THE EDGE NANO
4G, 5G and Starlink at the Edge with onboard AI and Machine Learning
$499
Powered by
THE EDGE NANO
4G, 5G and Starlink at the Edge with onboard AI and Machine Learning
$499
Powered by
CubePilot flight computer + NVIDIA® Jetson Orin‑class module (CUDA‑accelerated inference)
NVIDIA DeepStream pipeline, adaptive bitrate, error correction, and stream health telemetry
Redundant 4G/5G, optional Starlink & Wi‑Fi; auto failover, VPN‑ready
LIDAR + SLAM sensor fusion for 3D mapping and obstacle avoidance
Encrypted links, signed updates, role‑based access, audit logging
CSI/USB cameras, thermal, spotlight/speaker, ADS‑B, and custom SDK payloads

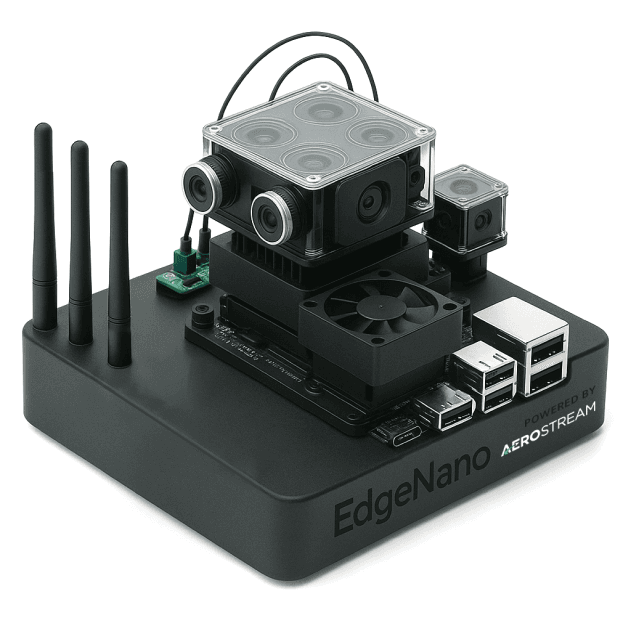

The EdgeNano is a compact edge-computing module designed to power autonomous UAVs and robotics systems with AI, machine learning, and real-time data processing. Developed by AeroStream (a Blip Industries brand), the EdgeNano enables 4G and 5G connectivity, CUDA-accelerated inference, and multi-sensor fusion for AI-driven flight control, streaming, and situational awareness.
Product Type
Weight
Processor
Flight Controller Interface
Operating System
AI/ML Frameworks
Power Input
Thermal Management
Dimensions
Edge AI Flight Computer
~200 g (depending on configuration)
NVIDIA Jetson Orin-class module (CUDA, TensorRT, Deep Learning Accelerators)
CubePilot-compatible (via UART / CAN / I²C)
Ubuntu 20.04 LTS + NVIDIA JetPack SDK
TensorFlow, PyTorch, ONNX, ROS2
5–22 V DC
Active cooling with low-noise fan
110 × 90 × 55 mm (est.)
GPU
CPU
Memory
Storage
AI Performance
Edge Processing
Supported Models
NVIDIA Ampere architecture GPU with CUDA cores
8-core ARM Cortex-A78AE 64-bit CPU
8–32 GB LPDDR5 (configurable)
128 GB NVMe SSD (expandable)
Up to 70 TOPS (depending on Orin variant)
Real-time object detection, SLAM mapping, sensor fusion
YOLOv8, DeepSORT, OpenPose, and custom DNNs
4G LTE
5G
Wi-Fi / Ethernet
Auto-Failover
VPN & Security
Telemetry Protocols
Redundant 4G modem with secure VPN tunneling
Ultra-low-latency connection for HD video and telemetry
Dual-band Wi-Fi 6 and Gigabit Ethernet
5G-to-4G fallback with intelligent routing
Role-based access, signed firmware, AES-256 encryption
MAVLink, RTSP, RTMP, MQTT
Video Pipeline
Resolution
Latency
Data Logging
Health Telemetry
NVIDIA GStreamer with adaptive bitrate and error correction
Up to 4K @ 60 FPS
<100 ms over 5G network
Edge caching and cloud sync (AWS/GCP)
Stream integrity, CPU/GPU temperature, connection status
Sensor Fusion
Navigation Stack
Compute Offload
Payload Control
I/O Interfaces
LIDAR + SLAM + GNSS integration for obstacle detection and mapping
ROS2-based real-time localization and path planning
AI task scheduling between GPU and flight controller
Supports spotlight, speaker, ADS-B, and custom SDK payloads
CSI/USB3 cameras, UART, GPIO, CAN, I²C
Data Encryption
Access Control
Updates
Telemetry Authentication
AES-256 end-to-end encryption
Role-based permissions and audit logging
Signed OTA firmware and software updates
Encrypted link verification and certificate-based trust model
Product
Firmware Version
Matrice 4D/4TD
13.01.0002
DJI Enterprise APP
2.1.0
DJI Dock 3
13.01.0002
Matrice 3D/3TD
09.02.0108
DJI RC Pro Enterprise
02.01.0319
DJI Dock 2
09.02.0108
Matrice 30 Series
09.01.0006
DJI RC Plus
03.02.0907
DJI Dock
01.06.1704
Lattice's open data models allow any developer to create, enrich, and reference entity data, craft and interpret C2 tasking messages, and integrate C2 applications, robots, and tactical data link assets.
The Lattice SDK exposes both gRPC and HTTP APIs in several language-specific bindings (Java, Javascript, Python, C++, Go, and Rust) or our OpenAPI definition.
